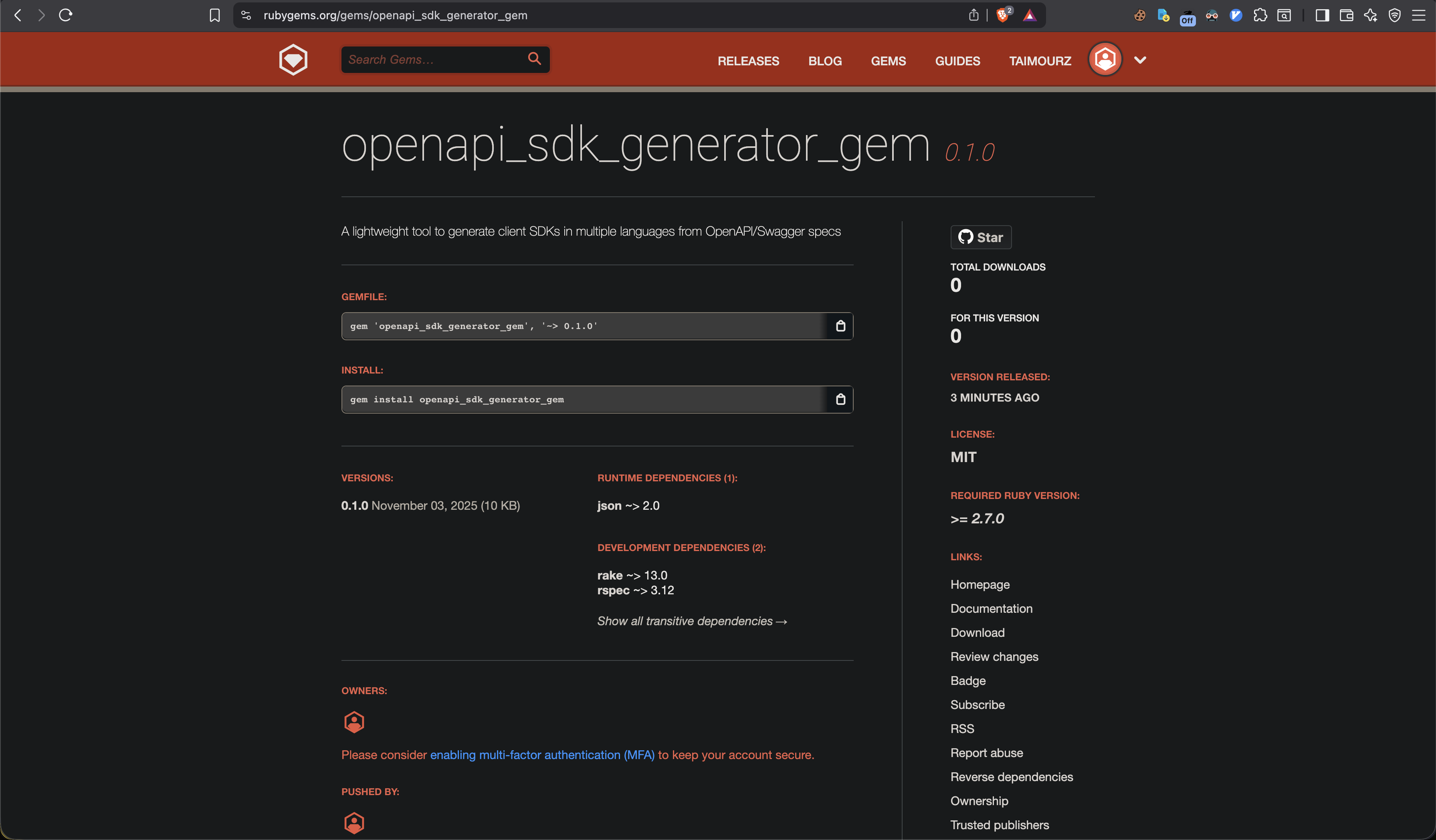

Build and Publish an OpenAPI SDK Generator Gem in Ruby

Introduction §

Why do we even need an SDK generator ? §

Lets see an example of Stripe. They maintain SDKs across so many languages without constantly needing to sync updates. They do this by using SDK generators. When Stripe updates their API, they don’t manually rewrite code in seven different languages. Instead, they use code generation tools that read their API specification and automatically produce type-safe client libraries for each language.

Here is an example of their openapi specification

What is OpenAPI §

OpenAPI is a global standard for describing REST APIs. The descriptions are made either in yaml or json format.

It contains information such as general description, metadata about the swagger version, and security information about how to access the API. It also lets us define paths (API endpoints) and the definitions (data structures for requests and responses).

One powerful feature is references. Instead of duplicating the same data structure across multiple endpoints, you define it once in the components/schemas section and reference it wherever needed.

Example: If you have a standard error response object used by all API endpoints, you can define it once as #/components/schemas/ErrorResponse and reference it from every endpoint. When you need to update the error structure, you change it in one place and all references automatically reflect the update

see $ref in this petstore.yaml ↗ example taken from swagger ↗.

in this project we have used this petstore example

A small sample of how an API specification loooks like:

openapi: 3.0.0
info:
  title: Petstore API
  description: A sample API for managing a pet store
  version: 1.0.0
servers:
  - url: https://petstore.swagger.io/v2
paths:
  /pets:
    get:
      summary: List all pets
      operationId: listPets
      parameters:
        - name: limit
          in: query
          schema:
            type: integer
      responses:
        '200':
          description: An array of pets
components:
  schemas:
    Pet:
      type: object
      required:
        - name
      properties:
        id:
          type: integer
          description: Unique identifier
        name:
          type: string
          description: Name of the pet
        status:
          type: string
          enum: [available, pending, sold]

openapi: 3.0.0
info:
  title: Petstore API
  description: A sample API for managing a pet store
  version: 1.0.0
servers:
  - url: https://petstore.swagger.io/v2
paths:
  /pets:
    get:
      summary: List all pets
      operationId: listPets
      parameters:
        - name: limit
          in: query
          schema:
            type: integer
      responses:
        '200':
          description: An array of pets
components:
  schemas:
    Pet:
      type: object
      required:
        - name
      properties:
        id:
          type: integer
          description: Unique identifier
        name:
          type: string
          description: Name of the pet
        status:
          type: string
          enum: [available, pending, sold]

Project Structure §

.
├── Gemfile
├── Gemfile.lock
├── README.md
├── bin
│   └── openapi-sdk-generator
├── examples
│   └── petstore_client.rb
├── lib
│   ├── openapi_sdk_generator
│   │   ├── generator.rb
│   │   ├── generators
│   │   │   ├── javascript_generator.rb
│   │   │   └── ruby_generator.rb
│   │   ├── parser.rb
│   │   ├── parsers
│   │   └── templates
│   │       ├── javascript_client.erb
│   │       ├── ruby_client.erb
│   │       └── ruby_model.erb
│   └── openapi_sdk_generator.rb
├── openapi_sdk_generator.gemspec
├── output
│   ├── ...
├── spec
│   └── parser_spec.rb
└── test
    └── fixtures
        └── petstore.yaml

.
├── Gemfile
├── Gemfile.lock
├── README.md
├── bin
│   └── openapi-sdk-generator
├── examples
│   └── petstore_client.rb
├── lib
│   ├── openapi_sdk_generator
│   │   ├── generator.rb
│   │   ├── generators
│   │   │   ├── javascript_generator.rb
│   │   │   └── ruby_generator.rb
│   │   ├── parser.rb
│   │   ├── parsers
│   │   └── templates
│   │       ├── javascript_client.erb
│   │       ├── ruby_client.erb
│   │       └── ruby_model.erb
│   └── openapi_sdk_generator.rb
├── openapi_sdk_generator.gemspec
├── output
│   ├── ...
├── spec
│   └── parser_spec.rb
└── test
    └── fixtures
        └── petstore.yaml

Workflow Diagram §

             ┌────────────────────────────┐
             |  OpenAPI Spec (YAML/JSON)  |
             └────────────┬───────────────┘
                          v
                      ┌────────────┐
                      |  Parser    |
                      | parser.rb  |
                      └────────────┘
            Extracts: base_url, endpoints, models
                           |
                           v
                 ┌───────────────────────┐
                 |     Generator Base    |
                 |     generator.rb      |
                 └────────────┬──────────┘
                provides shared utilities

             ┌────────────────┴───────────────┐
             v                                v
  ┌─────────────────────┐             ┌──────────────────────┐
  |    RubyGenerator    |             |  JavascriptGenerator |
  └─────────────────────┘             └──────────────────────┘
     uses .erb templates                   uses .erb templates
( ruby_client.erb + ruby_model.erb )     ( javascript_client.erb )
          |                                         |
          |                                         |
          |                                         |
 ┌─────────────────────┐                   ┌──────────────────┐
 |  Generated Ruby SDK |                   | Generated JS SDK |
 └─────────────────────┘                   └──────────────────┘

             ┌────────────────────────────┐
             |  OpenAPI Spec (YAML/JSON)  |
             └────────────┬───────────────┘
                          v
                      ┌────────────┐
                      |  Parser    |
                      | parser.rb  |
                      └────────────┘
            Extracts: base_url, endpoints, models
                           |
                           v
                 ┌───────────────────────┐
                 |     Generator Base    |
                 |     generator.rb      |
                 └────────────┬──────────┘
                provides shared utilities

             ┌────────────────┴───────────────┐
             v                                v
  ┌─────────────────────┐             ┌──────────────────────┐
  |    RubyGenerator    |             |  JavascriptGenerator |
  └─────────────────────┘             └──────────────────────┘
     uses .erb templates                   uses .erb templates
( ruby_client.erb + ruby_model.erb )     ( javascript_client.erb )
          |                                         |
          |                                         |
          |                                         |
 ┌─────────────────────┐                   ┌──────────────────┐
 |  Generated Ruby SDK |                   | Generated JS SDK |
 └─────────────────────┘                   └──────────────────┘

Step 1: Architecture §

1. The Parser §

The parser.rb ↗ is the brain of our generator. It reads OpenAPI specification file - petstore.yaml ↗

It has the ability to parse input both from a file and a url. Once it has all the content, it then Extracts API endpoints, parameters, response schemas and finally parses data models and their properties

module OpenapiSdkGenerator
  class Parser
    attr_reader :spec, :endpoints, :models, :base_url

    def initialize(file_path)
      @file_path = file_path
      @spec = load_spec
      @endpoints = []
      @models = {}
      @api_info = {}
      parse_spec
    end

    ...

    private

    def load_spec
      content = fetch_content
      parse_content(content)
    rescue => e
      raise Error, "Failed to load OpenAPI spec: #{e.message}"
    end

    def fetch_content
      if url?(@file_path)
        fetch_from_url(@file_path)
      else
        fetch_from_file(@file_path)
      end
    end

    def fetch_content
      if url?(@file_path)
        fetch_from_url(@file_path)
      else
        fetch_from_file(@file_path)
      end
    end


    def parse_spec
      parse_info
      parse_servers
      parse_paths
      parse_schemas
    end

    ...

  end
end

module OpenapiSdkGenerator
  class Parser
    attr_reader :spec, :endpoints, :models, :base_url

    def initialize(file_path)
      @file_path = file_path
      @spec = load_spec
      @endpoints = []
      @models = {}
      @api_info = {}
      parse_spec
    end

    ...

    private

    def load_spec
      content = fetch_content
      parse_content(content)
    rescue => e
      raise Error, "Failed to load OpenAPI spec: #{e.message}"
    end

    def fetch_content
      if url?(@file_path)
        fetch_from_url(@file_path)
      else
        fetch_from_file(@file_path)
      end
    end

    def fetch_content
      if url?(@file_path)
        fetch_from_url(@file_path)
      else
        fetch_from_file(@file_path)
      end
    end


    def parse_spec
      parse_info
      parse_servers
      parse_paths
      parse_schemas
    end

    ...

  end
end

• parse_paths: Iterates through all API endpoints and extracts HTTP methods, paths, parameters, and responses
• parse_schemas: Extracts data model definitions from the components/schemas section
• parse_parameters: Handles query, path, header, and body parameters

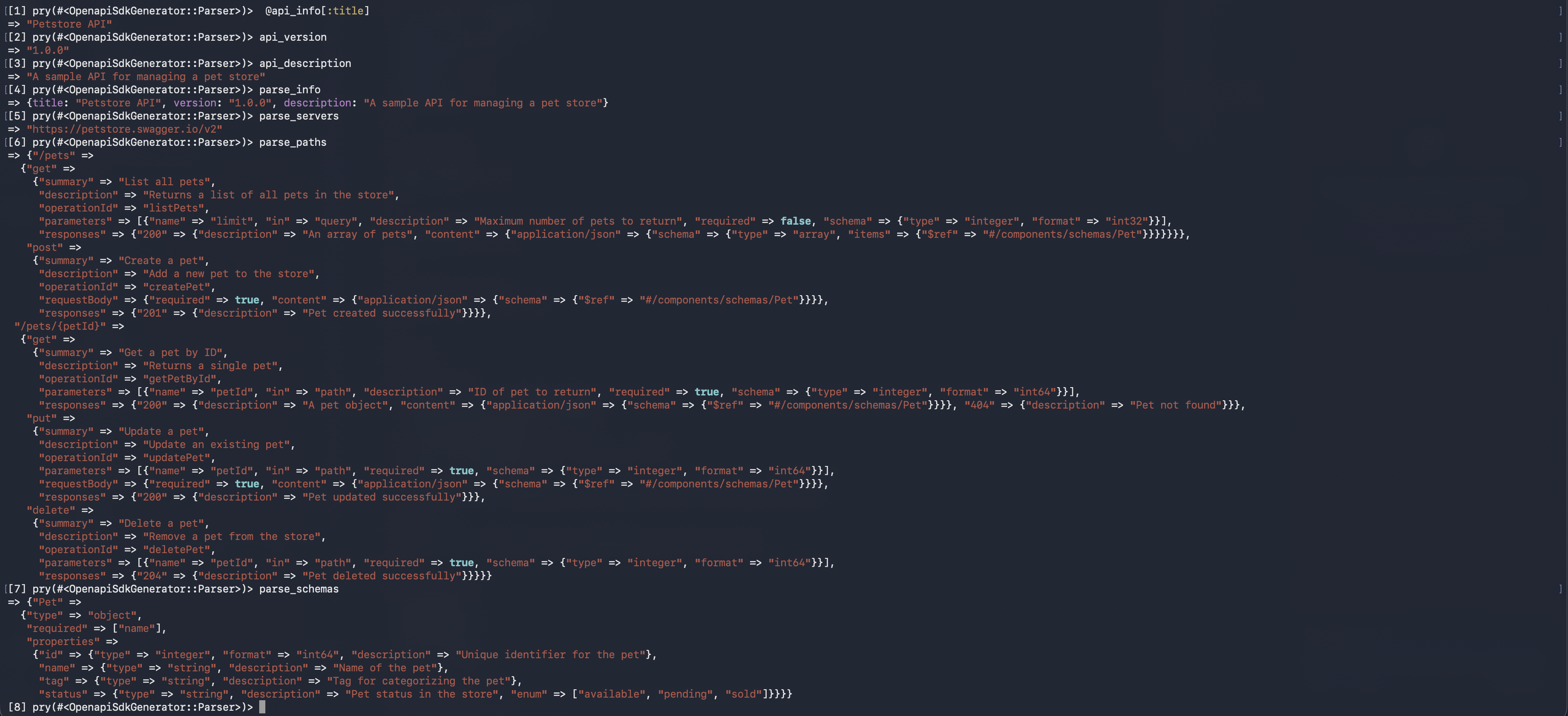

Here is how it looks

2. Language-Specific Generators §

All of our language-specific generators i.e ruby_generator.rb and javascript_generator.eb will inherit from generator.rb ↗. It provides common utility methods and enforces rules that all its subclasses must follow. eg, they must implement methods def generate and def write_to_directory

Ruby Generator - ruby_generator.rb ↗ §

This class is responsible for generating ruby files as follows:

├── output
│   ├── README.md
│   ├── client.rb
│   └── models
│       ├── error.rb
│       ├── newpet.rb
│       └── pet.rb


├── output
│   ├── README.md
│   ├── client.rb
│   └── models
│       ├── error.rb
│       ├── newpet.rb
│       └── pet.rb


module OpenapiSdkGenerator
  module Generators
    class RubyGenerator < Generator

      ...

      def write_to_directory(output_dir)
        FileUtils.mkdir_p(output_dir)
        FileUtils.mkdir_p(File.join(output_dir, 'models'))

        # Generate client.rb
        client_content = generate_client
        File.write(File.join(output_dir, 'client.rb'), client_content)

        # Generate models
        parser.models.each do |name, model|
          model_content = generate_model(model)
          filename = "#{sanitize_name(name)}.rb"
          File.write(File.join(output_dir, 'models', filename), model_content)
        end

        # Write readme file
        readme_content = generate_readme
        File.write(File.join(output_dir, 'README.md'), readme_content)
      end

       ...

    end
  end
end

module OpenapiSdkGenerator
  module Generators
    class RubyGenerator < Generator

      ...

      def write_to_directory(output_dir)
        FileUtils.mkdir_p(output_dir)
        FileUtils.mkdir_p(File.join(output_dir, 'models'))

        # Generate client.rb
        client_content = generate_client
        File.write(File.join(output_dir, 'client.rb'), client_content)

        # Generate models
        parser.models.each do |name, model|
          model_content = generate_model(model)
          filename = "#{sanitize_name(name)}.rb"
          File.write(File.join(output_dir, 'models', filename), model_content)
        end

        # Write readme file
        readme_content = generate_readme
        File.write(File.join(output_dir, 'README.md'), readme_content)
      end

       ...

    end
  end
end

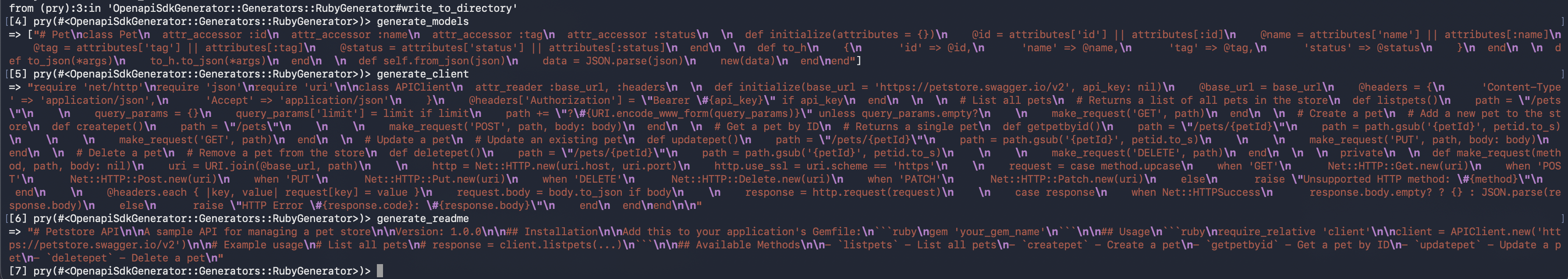

Here we can see the output that is going to get written in these files

JavaScript Generator - javascript_generator.rb ↗ §

This class is responsible for generating javascript files as follows:

├── output
│   ├── README.md
│   ├── client.js
│   └── package.json


├── output
│   ├── README.md
│   ├── client.js
│   └── package.json


module OpenapiSdkGenerator
  module Generators
    class JavascriptGenerator < Generator

     ...

      def write_to_directory(output_dir)
        FileUtils.mkdir_p(output_dir)

        # Write client file
        client_content = generate_client
        File.write(File.join(output_dir, 'client.js'), client_content)

        # Write package.json
        package_json = generate_package_json
        File.write(File.join(output_dir, 'package.json'), package_json)

        # Write readme file
        readme_content = generate_readme
        File.write(File.join(output_dir, 'README.md'), readme_content)
      end

      ...

    end
  end
end

module OpenapiSdkGenerator
  module Generators
    class JavascriptGenerator < Generator

     ...

      def write_to_directory(output_dir)
        FileUtils.mkdir_p(output_dir)

        # Write client file
        client_content = generate_client
        File.write(File.join(output_dir, 'client.js'), client_content)

        # Write package.json
        package_json = generate_package_json
        File.write(File.join(output_dir, 'package.json'), package_json)

        # Write readme file
        readme_content = generate_readme
        File.write(File.join(output_dir, 'README.md'), readme_content)
      end

      ...

    end
  end
end

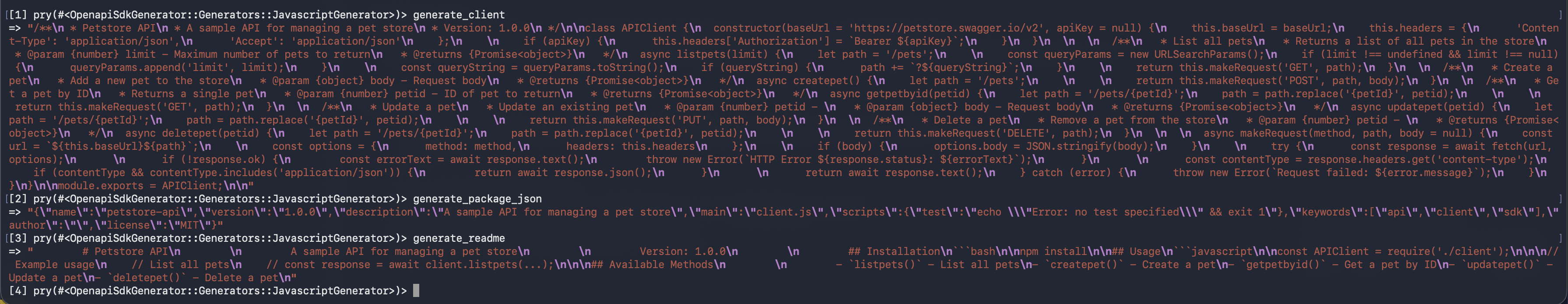

Here is how the output looks that is going to get written into these files

4. Templates §

we have prewritten templates that get dynamically populated during the runtime. These templates are used by our ruby and javascript generators

For example Lets see how this ruby_model.erb ↗ generates output

# <%= @current_model[:name] %>
class <%= camelize(@current_model[:name]) %>
  <%- @current_model[:properties].each do |name, prop| -%>
  attr_accessor :<%= sanitize_name(name) %>
  <%- end -%>

  def initialize(attributes = {})
    <%- @current_model[:properties].each do |name, prop| -%>
    @<%= sanitize_name(name) %> = attributes['<%= name %>'] || attributes[:<%= sanitize_name(name) %>]
    <%- end -%>
  end

  def to_h
    {
      <%- @current_model[:properties].keys.each_with_index do |name, index| -%>
      '<%= name %>' => @<%= sanitize_name(name) %><%= index < @current_model[:properties].keys.length - 1 ? ',' : '' %>
      <%- end -%>
    }
  end

  def to_json(*args)
    to_h.to_json(*args)
  end

  def self.from_json(json)
    data = JSON.parse(json)
    new(data)
  end
end

# <%= @current_model[:name] %>
class <%= camelize(@current_model[:name]) %>
  <%- @current_model[:properties].each do |name, prop| -%>
  attr_accessor :<%= sanitize_name(name) %>
  <%- end -%>

  def initialize(attributes = {})
    <%- @current_model[:properties].each do |name, prop| -%>
    @<%= sanitize_name(name) %> = attributes['<%= name %>'] || attributes[:<%= sanitize_name(name) %>]
    <%- end -%>
  end

  def to_h
    {
      <%- @current_model[:properties].keys.each_with_index do |name, index| -%>
      '<%= name %>' => @<%= sanitize_name(name) %><%= index < @current_model[:properties].keys.length - 1 ? ',' : '' %>
      <%- end -%>
    }
  end

  def to_json(*args)
    to_h.to_json(*args)
  end

  def self.from_json(json)
    data = JSON.parse(json)
    new(data)
  end
end

The output generated file:

# Pet
class Pet
  attr_accessor :name
  attr_accessor :tag
  attr_accessor :id

  def initialize(attributes = {})
    @name = attributes['name'] || attributes[:name]
    @tag = attributes['tag'] || attributes[:tag]
    @id = attributes['id'] || attributes[:id]
  end

  def to_h
    {
      'name' => @name,
      'tag' => @tag,
      'id' => @id
    }
  end

  def to_json(*args)
    to_h.to_json(*args)
  end

  def self.from_json(json)
    data = JSON.parse(json)
    new(data)
  end
end

# Pet
class Pet
  attr_accessor :name
  attr_accessor :tag
  attr_accessor :id

  def initialize(attributes = {})
    @name = attributes['name'] || attributes[:name]
    @tag = attributes['tag'] || attributes[:tag]
    @id = attributes['id'] || attributes[:id]
  end

  def to_h
    {
      'name' => @name,
      'tag' => @tag,
      'id' => @id
    }
  end

  def to_json(*args)
    to_h.to_json(*args)
  end

  def self.from_json(json)
    data = JSON.parse(json)
    new(data)
  end
end

We other templates we have used are these:

1. ruby_client.erb ↗
2. javascript_client.erb ↗

Step 2: Running the application §

There are 2 ways to generate output. we have these 2 script files.

1. openapi-sdk-generator ↗ acts as the “front desk” of our SDK Generator. It collects user input via command-line flags and validates them. If everything is fine, it passes control to the generator which handles ruby and js file generation.

2. petstore_client.rb ↗ - This is a cutom script written only for our petstore example for our ease

Example - Using File: §

./bin/openapi-sdk-generator --help
./bin/openapi-sdk-generator -i test/fixtures/petstore.yaml -o ./output -l javascript # generates only js files
./bin/openapi-sdk-generator -i test/fixtures/petstore.yaml -o ./output -l ruby       # generates only ruby files
 ruby examples/petstore_client.rb                                                    # generates both files

./bin/openapi-sdk-generator --help
./bin/openapi-sdk-generator -i test/fixtures/petstore.yaml -o ./output -l javascript # generates only js files
./bin/openapi-sdk-generator -i test/fixtures/petstore.yaml -o ./output -l ruby       # generates only ruby files
 ruby examples/petstore_client.rb                                                    # generates both files

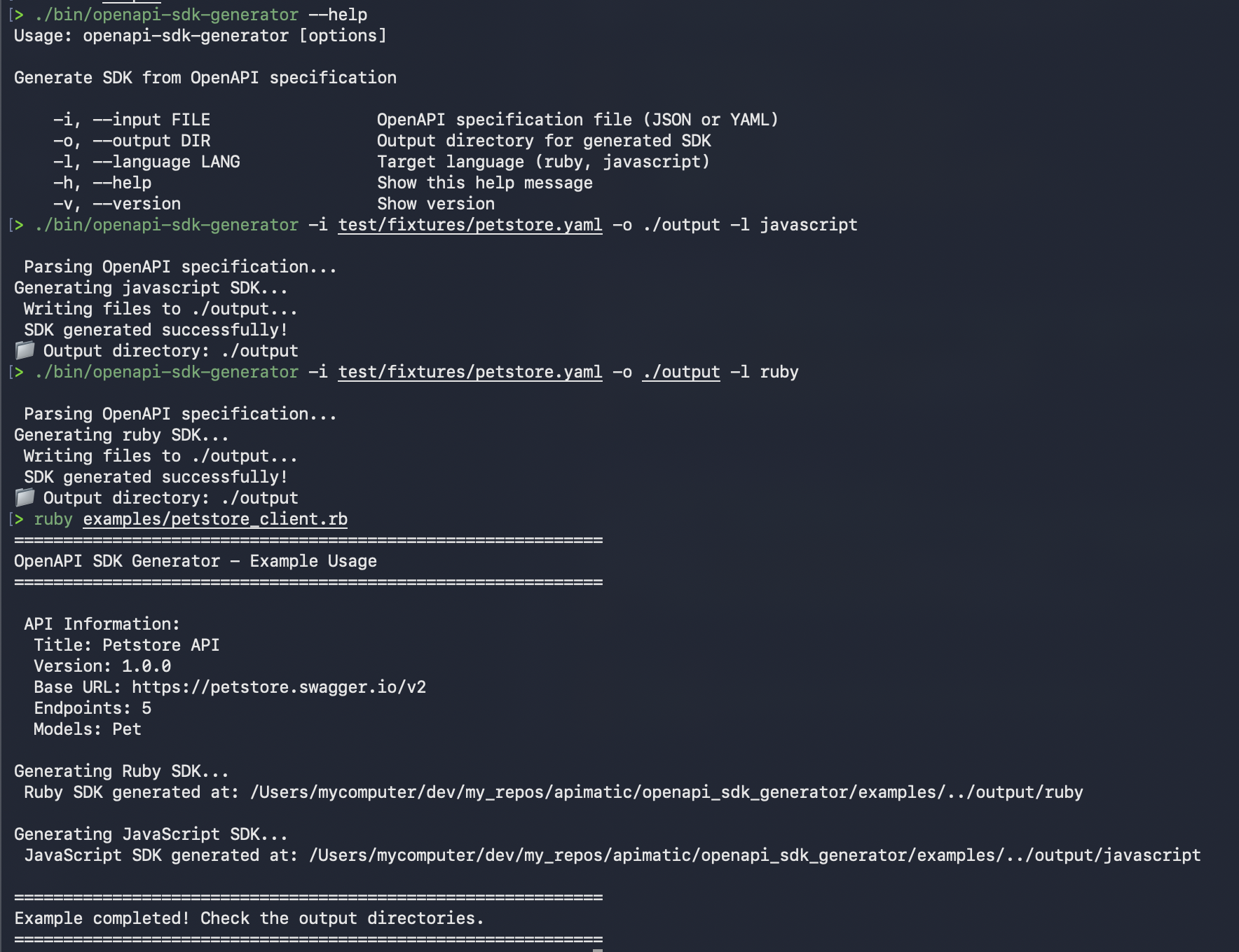

Here is how you can use it.

Example - Using Url §

./bin/openapi-sdk-generator -i https://raw.githubusercontent.com/taimourz/openapi_sdk_generator_gem/refs/heads/main/test/fixtures/petstore.yaml -o ./output -l ruby
./bin/openapi-sdk-generator -i https://raw.githubusercontent.com/taimourz/openapi_sdk_generator_gem/refs/heads/main/test/fixtures/petstore.yaml -o ./output -l javascript

./bin/openapi-sdk-generator -i https://raw.githubusercontent.com/taimourz/openapi_sdk_generator_gem/refs/heads/main/test/fixtures/petstore.yaml -o ./output -l ruby
./bin/openapi-sdk-generator -i https://raw.githubusercontent.com/taimourz/openapi_sdk_generator_gem/refs/heads/main/test/fixtures/petstore.yaml -o ./output -l javascript

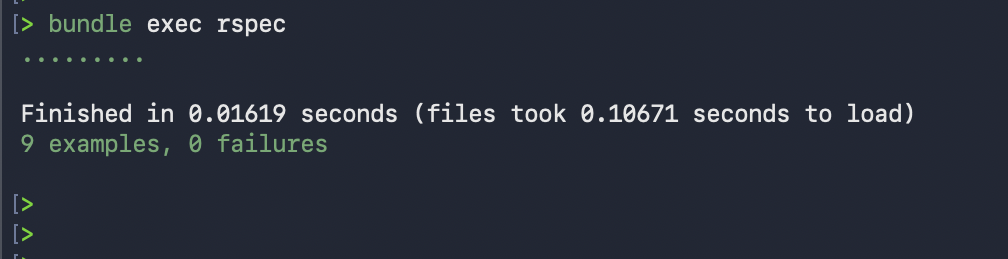

Step 3: Testing with RSpec §

Testing is extemely crucial to verify if the genrated files are correct. In order to test our generated files we have written one spec file: parser_spec.rb ↗. Right now, we only have tests for ruby but they are enough to get the point across.

This spec ensures that:

• The OpenAPI document loads successfully
• API metadata (title, version, description) is correctly parsed
• Endpoints and parameters are extracted with correct HTTP methods & paths
• Models, properties, and required fields are resolved

Step 4: Publishing/Updating Gem §

1. Building §

Our openapi_sdk_generator.gemspec ↗ defines the gem metadata.

Sign up on ruby gems org and generate an API key

mkdir -p ~/.gem
vim ~/.gem/credentials

mkdir -p ~/.gem
vim ~/.gem/credentials

copy paste your api key like this ( Dont worry api key is incorrect 😎 )

---
:rubygems_api_key: rubygems_7bb74d7bb74d3f6468fdasfdasdafdsafdsa16c8b92dadfasda6adfd

---
:rubygems_api_key: rubygems_7bb74d7bb74d3f6468fdasfdasdafdsafdsa16c8b92dadfasda6adfd

Finally build and push

chmod 0600 ~/.gem/credentials
gem signin
gem build openapi_sdk_generator.gemspec
gem push openapi_sdk_generator_gem-0.1.0.gem

chmod 0600 ~/.gem/credentials
gem signin
gem build openapi_sdk_generator.gemspec
gem push openapi_sdk_generator_gem-0.1.0.gem

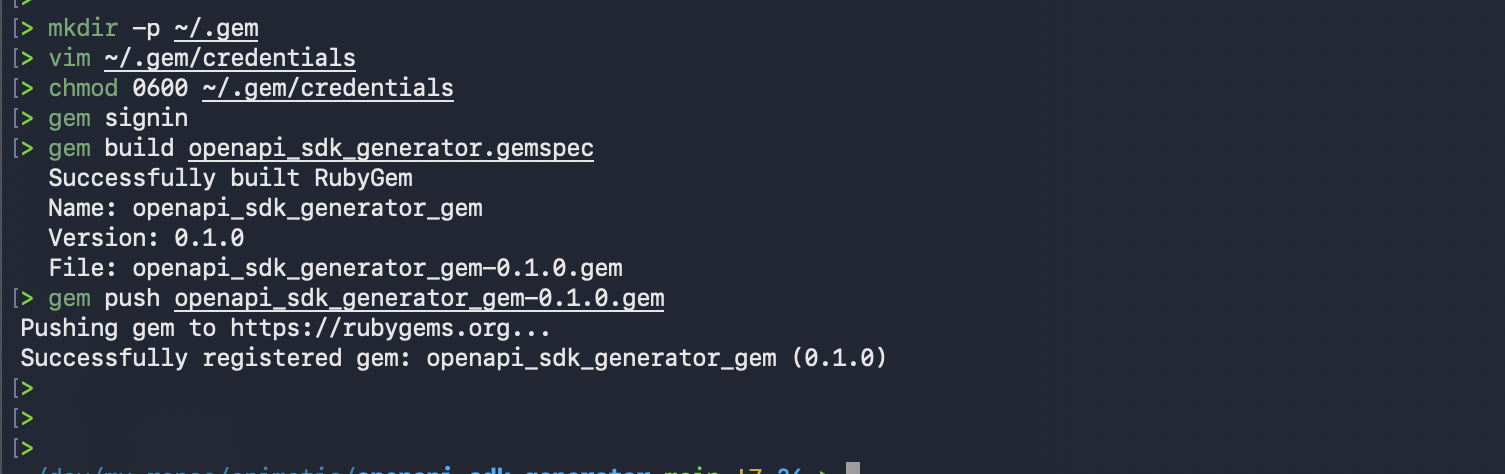

Here is how i did it

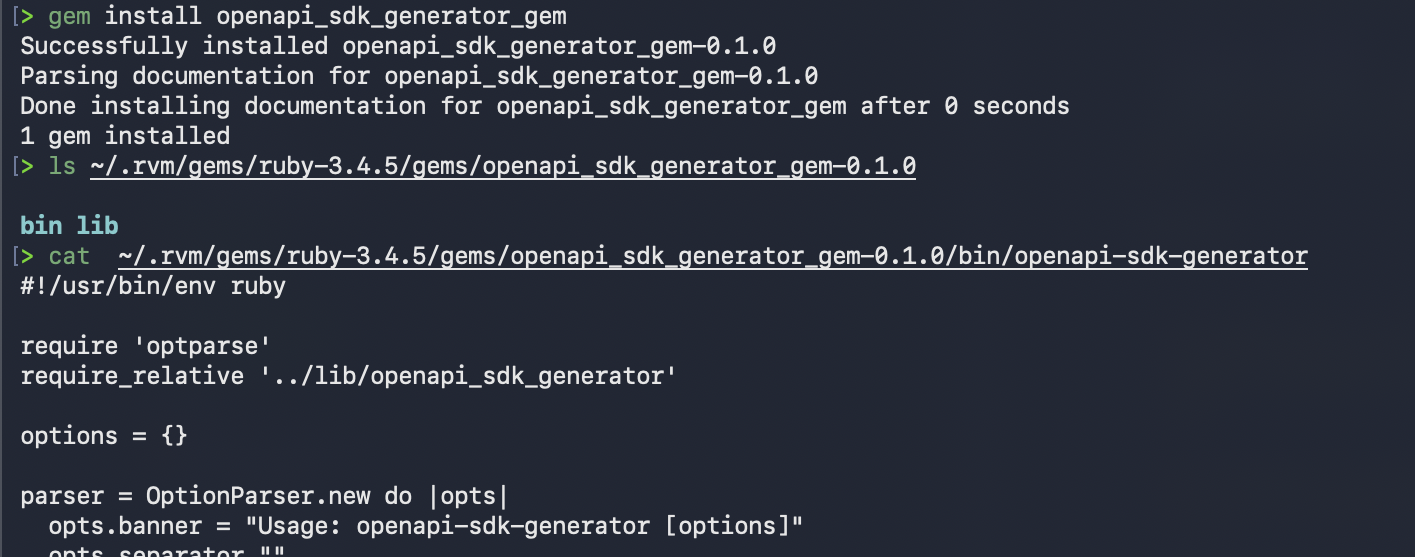

2. Pull from Ruby.org and verify §

gem install openapi_sdk_generator_gem
ls ~/.rvm/gems/ruby-3.4.5/gems/openapi_sdk_generator_gem-0.1.0 # look in your own ruby version
cat  ~/.rvm/gems/ruby-3.4.5/gems/openapi_sdk_generator_gem-0.1.0/bin/openapi-sdk-generator

gem install openapi_sdk_generator_gem
ls ~/.rvm/gems/ruby-3.4.5/gems/openapi_sdk_generator_gem-0.1.0 # look in your own ruby version
cat  ~/.rvm/gems/ruby-3.4.5/gems/openapi_sdk_generator_gem-0.1.0/bin/openapi-sdk-generator

That’s it! Your gem is now live on RubyGems.org and anyone can install it.

3. Updating §

Now that we have successfully published our gem and when we need to make an update, we would want to update it at regular intervals. Here is how we do it

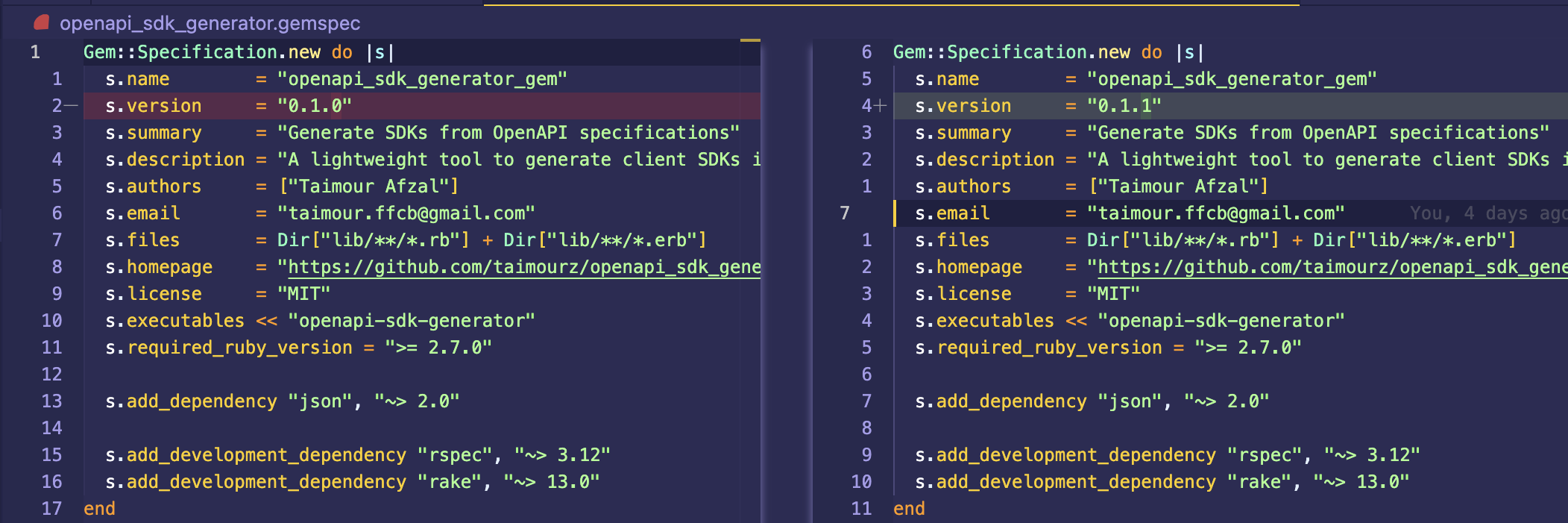

First we need to increase the version number like this:

Finally push the updated gem:

gem build openapi_sdk_generator.gemspec
gem push openapi_sdk_generator_gem-0.1.1.gem

gem build openapi_sdk_generator.gemspec
gem push openapi_sdk_generator_gem-0.1.1.gem

Resources §

1. Github Repo
2. Gem on RubyOrg
3. OpenApi Specification
4. PetStore API
